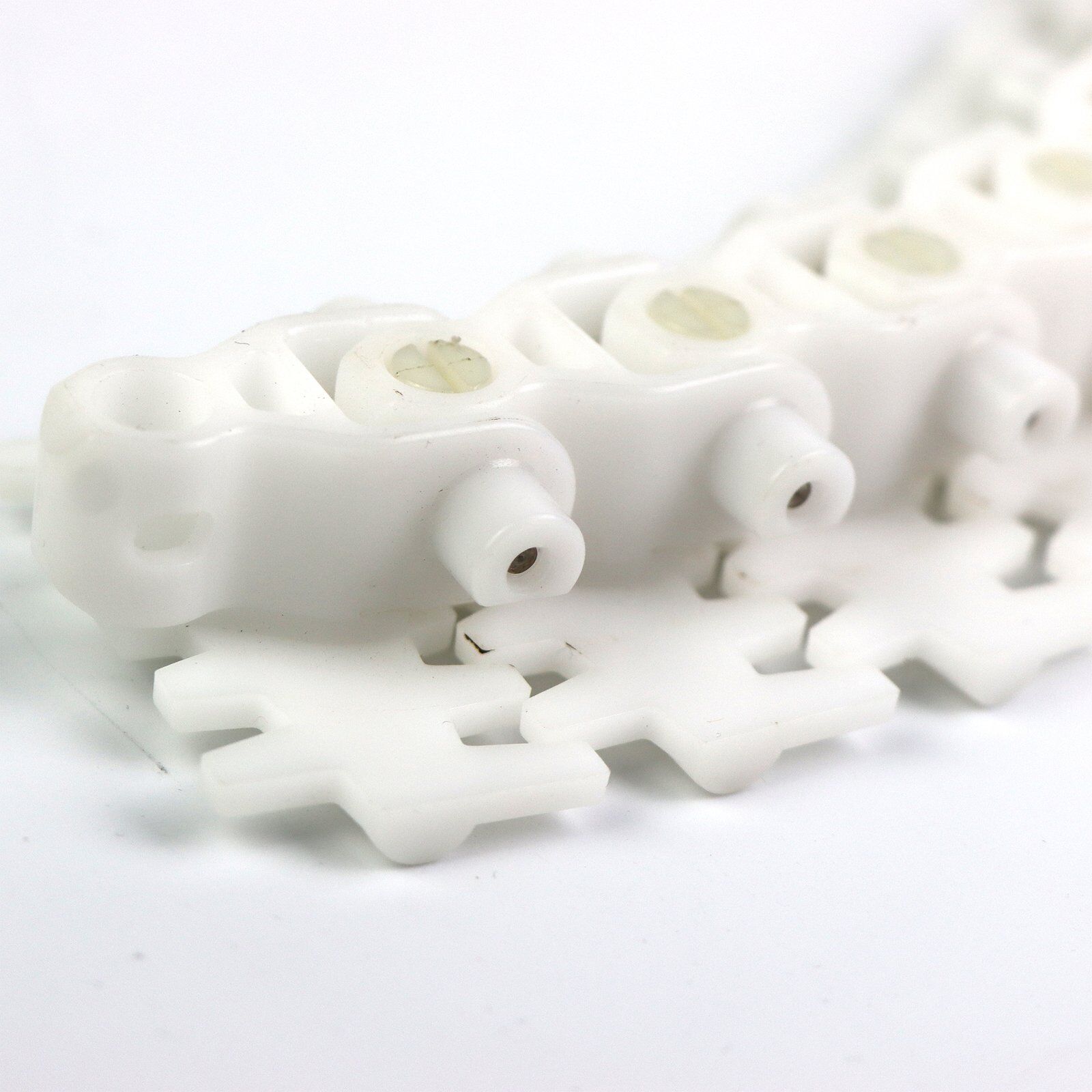

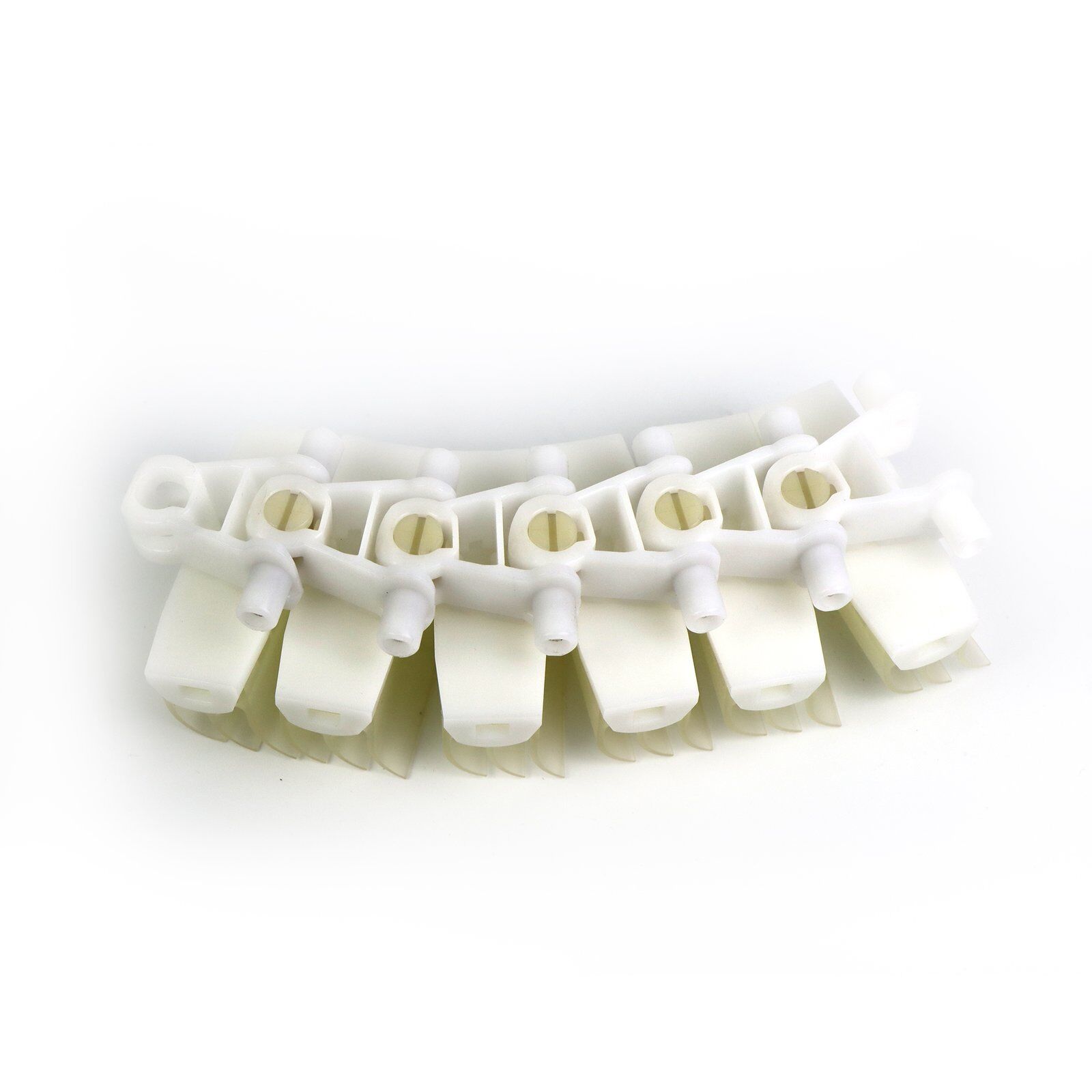

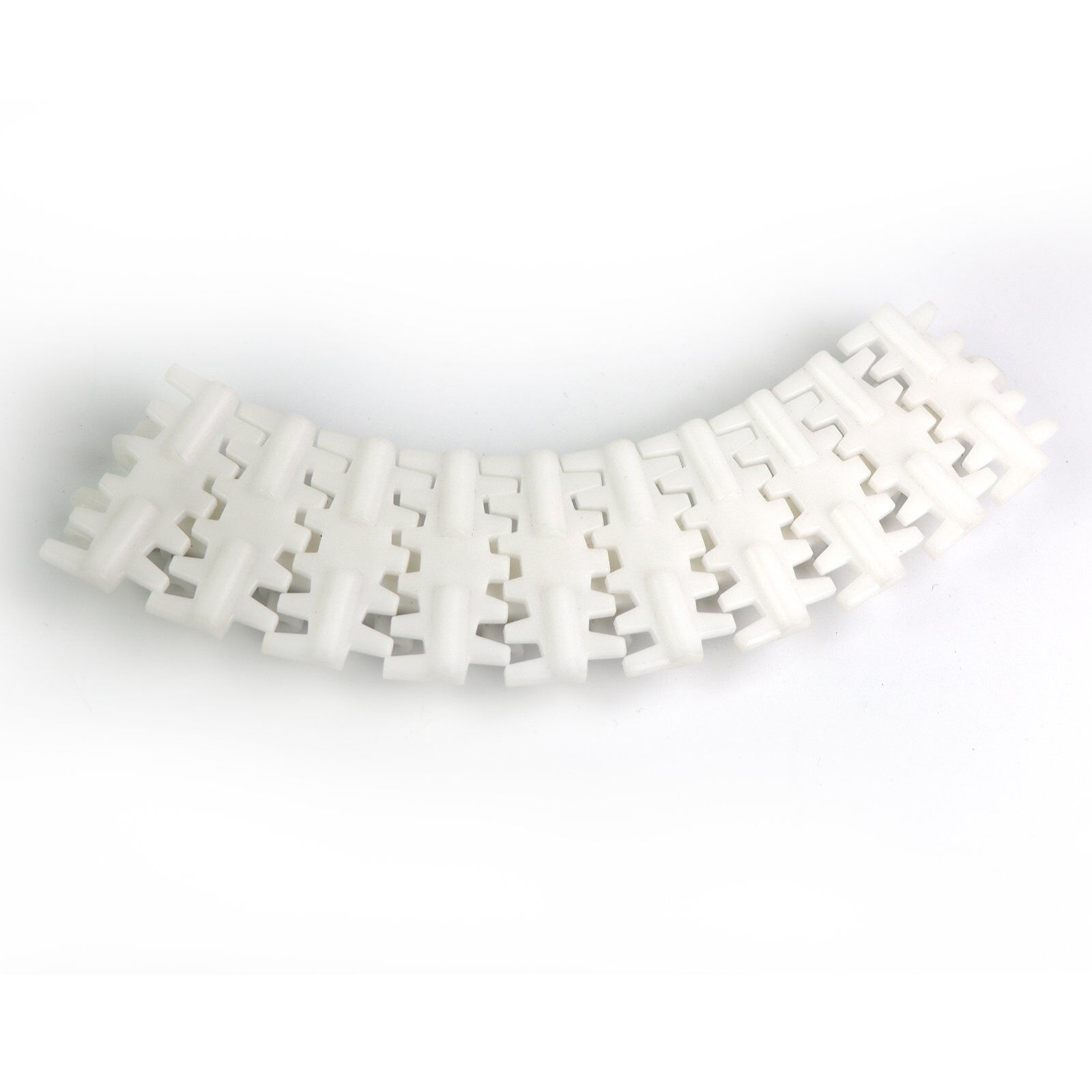

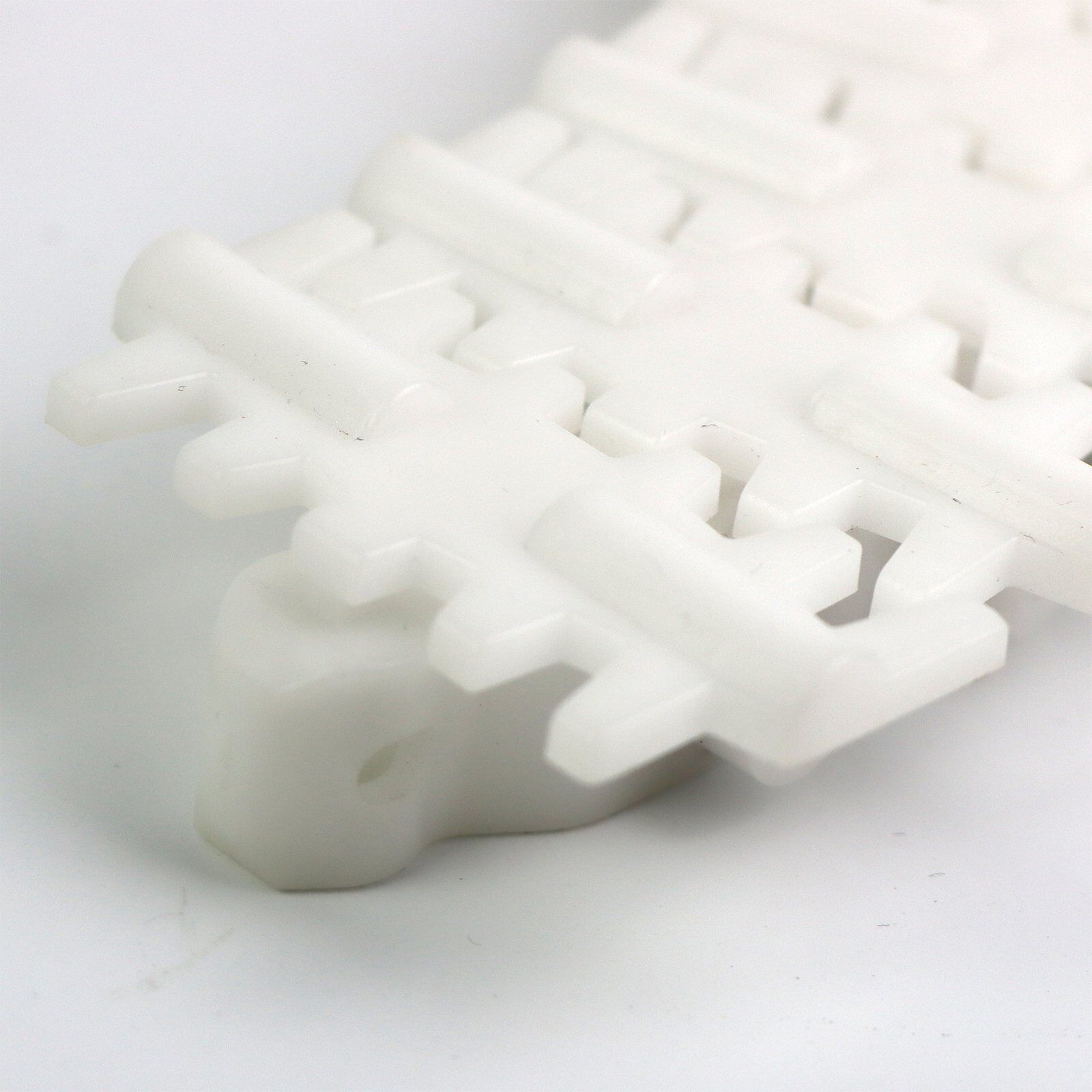

2670 Multiflex conveyor chains-83

Width:83mm

Length:3.5mm

Side bend radius(min):170
Beam width:85mm
Chain pitch:25.4mm
Drive unit capacity:20-1000N
Chain tension limit:1000N
Item width:15-140mm
Maximum conveyor length:40m
Maximum weight on conveyor:200kgs
Maximum permitted load per link:1.5kgs

Application: Widely used in Small ball bearings, perfume bottles, pharmaceutical bottles, and metal components
