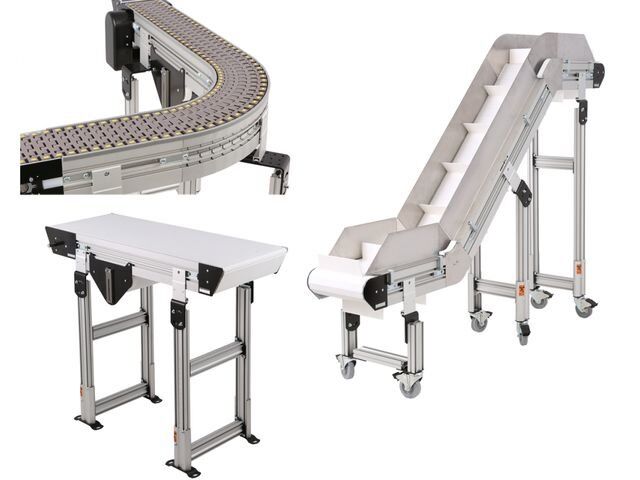

Modular Belt Conveyor



Advantage
Our belt conveyor is built on a straight profile and is driven by a roller. The conveyor can be loaded to 15000 kg (more on request) and thanks to its wide widths and long lengths it is optimally suited for the transport of heavy and bulky goods.

Dimensions – Technical Data
Standard conveyor width B: 200-2000 mm (in 100 mm increments)
Conveyor length: Custom from 1000-15000 mm
Total load: up to 15000 kg
Drive & speed: to v = 30 m/min
Drive versions: AA, AC, AM, AS

Curved belt conveyor
Our curved belt conveyor is compatible with all our Hairise conveyors. Even small conveyed materials can be transported, the connection space is around 50 mm. Due to the compact under-belt drive, with standard motorization, external interference contours are prevented. Choose between the 90°,180°,360° versions with effective widths from 300 to 800 mm.
Dimensions – Technical Data
Conveyor angle: 90°, 180°, 360°

Effective width B: 300, 400, 500, 600, 700,800 mm
Total load: up to 15000 kg
Drive and speed: 0to 30 m/min

Lifting belt conveyor
Our conveyor is based on the profile and with its compact structure is suitable for the conveyance of small parts of all types, also in multi-shift operation. The technology of the inclined conveyor is based on our own unit, which has been produced thousands of times and consequently is proven and reliable. The incline elements can be configured at variable angles, different belts, cleats, stands, funnels, chutes, and side rails can be selected. Our conveyor is ECO stands for economy, i.e. an optimized cost-benefit ratio that is reflected in an attractive price. Fast delivery and high availability are promised by Moyestone.
Dimensions – Technical Data
Conveyor width B: 300 to 800 mm (in 100 mm increments)
Conveyor length L1+L2+L3: Variable to approx. 15000 mm
Belt bend: 30, 45, and 60°, other angles on request
Total load: Depending on angle and speed, up to 5000 kg
Drive & speed: to v = 15 m/min
